Observe with Telemetry¶

QType supports telemetry for all applications out of the box -- simply add the Telemetry field to your application.

QType integrates with popular observability platforms to help you understand, debug, and optimize your LLM applications. This guide covers how to set up telemetry with Phoenix and Langfuse.

Supported Providers¶

Phoenix - Open-source LLM observability from Arize AI (default)
Langfuse - Open-source LLM engineering platform with tracing and analytics

Phoenix Integration¶

Arize Phoenix is an open-source platform for LLM observability that runs locally or in the cloud.

Setting up Phoenix¶

First, ensure you have installed the qtype interpreter:

pip install qtype[interpreter]

Next, install Arize Phoenix:

pip install arize-phoenix

and launch it:

phoenix serve

This launches Phoenix on your local machine and listens for trace data at http://localhost:6006/v1/traces.

Adding Phoenix Telemetry¶

Add telemetry to your QType application:

tel   flo

href="#__codelineno-3-1">```yaml l-Scalar l-Scalar-Plain">id: hello_world emetry: id: hello_world_telemetry endpoint: http://localhost:6006/v1/traces ws: - id: simple_chat_example description: A simple stateful chat flow with OpenAI mode: Chat steps: - id: llm_inference_step memory: id: chat_memory model: id: gpt-4 provider: openai auth: id: openai_auth type: api_key api_key: ${OPENAI_KEY} system_message: | You are a helpful assistant. inputs: - id: user_message type: ChatMessage outputs: - id: response_message type: ChatMessage

Notice the telemetry field with the Phoenix endpoint. The provider defaults to "Phoenix" so you don't need to specify it.

Viewing Phoenix Traces¶

Start your application:
```
qtype serve your-app.qtype.yaml
```
Navigate to http://localhost:8000/ui and have a conversation
View traces at http://localhost:6006. You'll see a project whose name matches your application id:

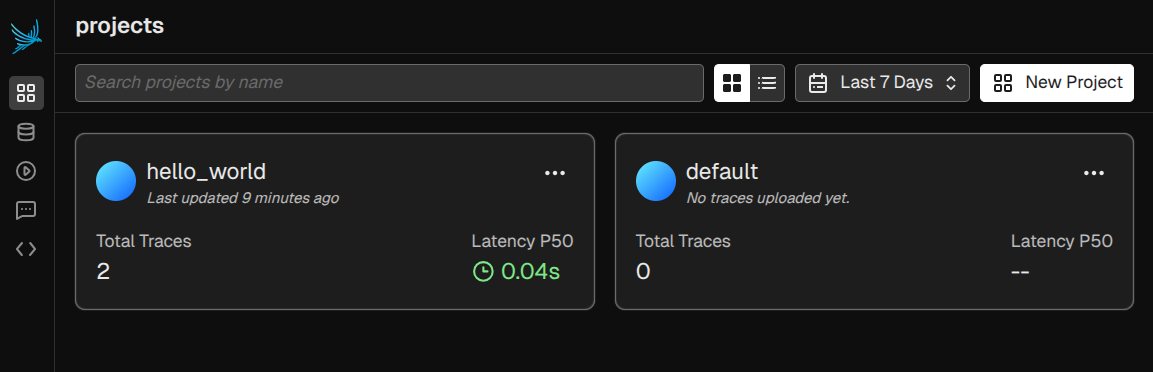

Phoenix Projects

Click on the project to see the traces of your conversation:

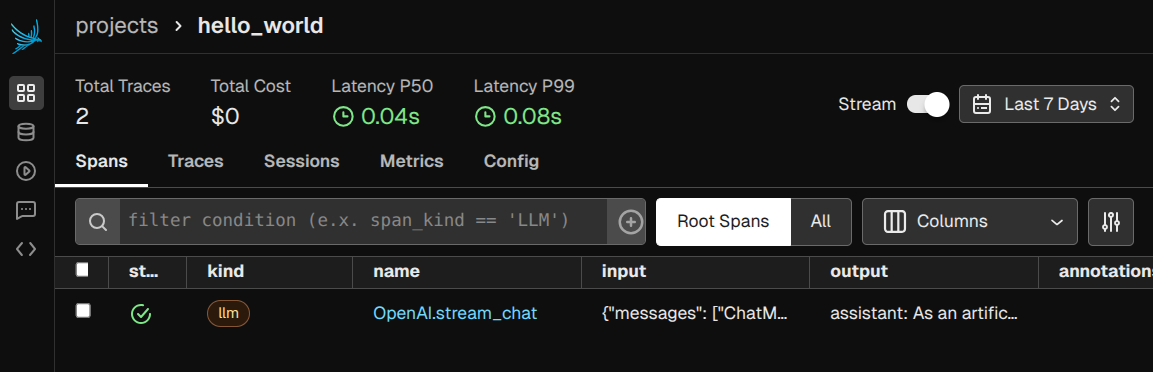

Phoenix Traces

Now you'll have a complete record of all LLM calls and interactions!

Langfuse Integration¶

Langfuse is an open-source LLM engineering platform that provides tracing, analytics, prompt management, and evaluation capabilities.

Getting Langfuse Credentials¶

Sign up for Langfuse Cloud or deploy self-hosted
Create a new project
Navigate to Settings → API Keys
Generate a new API key pair (public_key and secret_key)

Store credentials in environment variables:

export LANGFUSE_PUBLIC_KEY="pk-lf-..."
export LANGFUSE_SECRET_KEY="sk-lf-..."

Adding Langfuse Telemetry¶

Configure Langfuse as your telemetry provider:

telemetry:
  id: langfuse_telemetry
  provider: Langfuse
  endpoint: https://cloud.langfuse.com
  args:
    public_key: ${LANGFUSE_PUBLIC_KEY}
    secret_key: ${LANGFUSE_SECRET_KEY}

Required fields: - provider: Must be set to "Langfuse" - endpoint: Langfuse host URL - Cloud: https://cloud.langfuse.com - Self-hosted: Your instance URL - args.public_key: Your Langfuse public key - args.secret_key: Your Langfuse secret key

Complete Langfuse Example¶

id: hello_world_langfuse
description: A simple chat flow with Langfuse telemetry
models:
  - type: Model
    id: gpt4
    provider: openai
    model_id: gpt-4
    inference_params:
      temperature: 0.7
      max_tokens: 512
    auth: openai_auth
auths:
  - type: api_key
    id: openai_auth
    api_key: ${OPENAI_KEY}
memories:
  - id: chat_memory
    token_limit: 10000
flows:
  - type: Flow
    id: chat_example
    interface:
      type: Conversational
    variables:
      - id: user_message
        type: ChatMessage
      - id: response
        type: ChatMessage
    inputs:
      - user_message
    outputs:
      - response
    steps:
      - type: LLMInference
        id: llm_inference_step
        model: gpt4
        memory: chat_memory
        system_message: "You are a helpful assistant."
        inputs:
          - user_message
        outputs:
          - response
telemetry:
  id: langfuse_telemetry
  provider: Langfuse
  endpoint: https://cloud.langfuse.com
  args:
    public_key: ${LANGFUSE_PUBLIC_KEY}
    secret_key: ${LANGFUSE_SECRET_KEY}

Viewing Langfuse Traces¶

Run your application:

qtype serve examples/chat_with_langfuse.qtype.yaml

Interact with your application at http://localhost:8000/ui
View traces in Langfuse:
Go to https://cloud.langfuse.com
Navigate to your project
View traces in the Tracing tab

How Langfuse Integration Works¶

QType integrates with Langfuse via OpenTelemetry's OTLP protocol:

Creates an OpenTelemetry TracerProvider with your project name as the service name
Configures an OTLP HTTP exporter that sends spans to Langfuse's /api/public/otel endpoint
Uses Basic Authentication with your public_key:secret_key credentials
Automatically instruments LlamaIndex to capture all LLM interactions

All LLM calls, steps, and flows are automatically traced and sent to Langfuse.

Using AWS Secrets Manager¶

Both Phoenix and Langfuse support storing credentials in AWS Secrets Manager:

secret_manager:
  type: aws
  region: us-east-1

telemetry:
  id: langfuse_telemetry
  provider: Langfuse
  endpoint: https://cloud.langfuse.com
  args:
    public_key:
      secret: langfuse-credentials
      key: public_key
    secret_key:
      secret: langfuse-credentials
      key: secret_key

Troubleshooting¶

No traces appearing¶

Phoenix: - Verify Phoenix is running on the correct port (default: 6006) - Check the endpoint URL in your telemetry configuration - Ensure no firewall is blocking the connection

Langfuse: - Verify your credentials are correct (public_key starts with pk-lf-, secret_key starts with sk-lf-) - Check the endpoint URL (should NOT include /api/public/otel - this is added automatically) - Ensure your Langfuse project exists - Check application logs for authentication errors - Verify no extra whitespace in credentials

Self-hosted Langfuse¶

If using self-hosted Langfuse, set the endpoint to your instance URL:

telemetry:
  provider: Langfuse
  endpoint: https://langfuse.yourcompany.com
