Observability with Telemetry

QType supports telemetry for all applications out of the box -- simply add the Telemetry field to your application.

In this tutorial, we'll demonstrate how to add telemetry and use Arize Phoenix to analyze and understand the commiication with LLMs.

Setting up Phoenix

First, ensure you have installed the qtype interpreter:

pip install qtype[interpreter]

Next, install Arize Phoenix:

pip install arize-phoenix

and launch it:

phoenix serve

This launches Phoenix on your local machine and listens for trace data at http://localhost:6006/v1/traces.

Adding Telemetry

Next, we'll add telemetry to the Chatbot Example qtype definition:

```yaml
id: hello_world
telemetry:
  id: hello_world_telemetry
  endpoint: http://localhost:6006/v1/traces
flows:
  - id: simple_chat_example
    description: A simple stateful chat flow with OpenAI
    mode: Chat
    steps:
      - id: llm_inference_step
        memory:
          id: chat_memory
        model:
          id: gpt-4
          provider: openai
          auth:
            id: openai_auth
            type: api_key
            api_key: ${OPENAI_KEY}
        system_message: |
          You are a helpful assistant.
        inputs:
          - id: user_message
            type: ChatMessage
        outputs:
          - id: response_message
            type: ChatMessage

Notice the telemetry field is set to your local phoenix installation.

Next, navigate to http://localhost:8000/ui and have a quick conversation

Viewing Traces

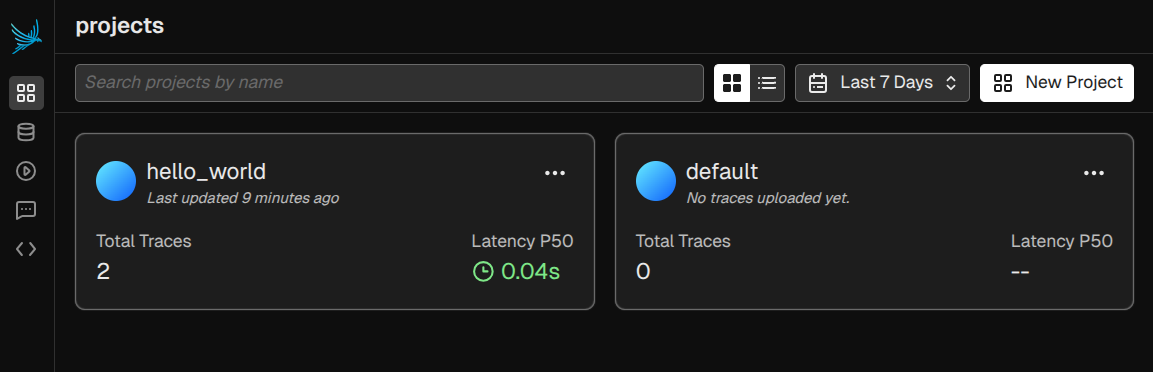

Now, you can navigate to http://localhost:6006. You'll see a project who's name matches your application id:

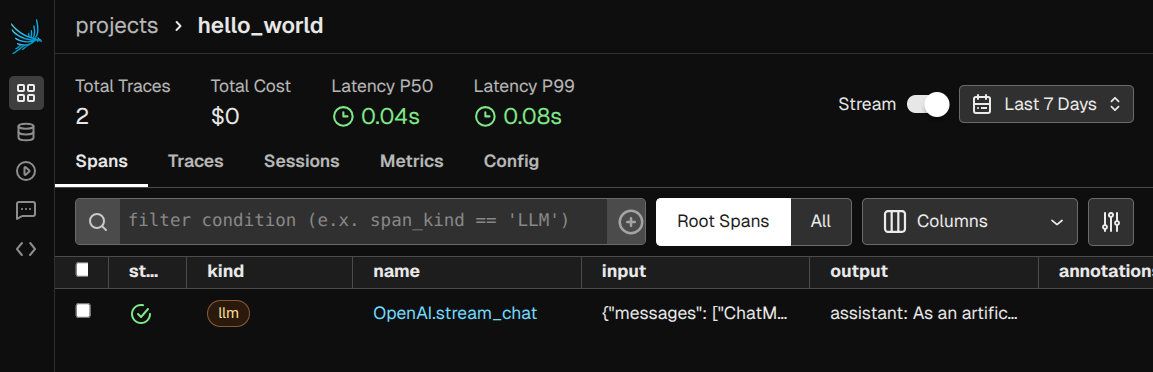

Click on the project, and you'll see the traces of your conversation:

And that's it! Now you'll have a record of all of the calls to and from llms for your application.
