Building A Pipeline with QType¶

This tutorial walks you through creating and running a simple, stateless "Complete" pipeline step by step using the hello_world.qtype.yaml example. Along the way, you'll learn the core QType concepts that make it work and how Complete flows differ from Chat flows.

By the end, you will have a working pipeline that takes a text input and returns an AI-generated answer using OpenAI.

What You'll Build¶

A one-shot Q&A pipeline that:

Accepts a single text input (question)
Uses OpenAI's GPT model to generate an answer
Returns the model's response as plain text
Runs statelessly (no chat history or memory)

Prerequisites¶

QType installed on your system
An OpenAI API key available to the process (environment variable OPENAI_KEY)
Basic familiarity with YAML

Step 1: Understand the Application¶

Every QType program starts with an Application. The application is the top-level container for your flows, models, tools, and configuration.

Start your YAML with an application id:

id: hello_world

The id uniquely identifies your application within QType.

Step 2: Define a Flow¶

A Flow is an ordered sequence of steps. For a simple pipeline, we only need one flow and one step.

Add a flow to your YAML:

id: hello_world

flows:
  - id: simple_example

Notes: - The id must be unique within the application. - Flows default to mode Complete (no need to specify it explicitly).

Step 3: Add an LLM Inference Step¶

A flow is made of steps. Here we’ll add a single LLMInference step that calls a model and returns a response. We’ll also configure the model provider and authentication.

id: hello_world

flows:
  - id: simple_example
    steps:
      - id: llm_inference_step
        model:
          id: gpt-4
          provider: openai
          auth:
            id: openai_auth
            type: api_key
            api_key: ${OPENAI_KEY}
        system_message: |
          You are a helpful assistant. Answer the following question:
          {{question}}

What’s happening here: - model: A Model configuration. We’re using OpenAI with an API key pulled from the OPENAI_KEY environment variable. - system_message: A prompt template. The {{question}} placeholder will be replaced with the input value at runtime.

Tip: You can customize model behavior using inference_params (for example, temperature) inside the model block.

Step 4: Declare Inputs¶

The LLM step needs the user’s question. Declare a step input variable:

inputs:
  - id: question
    type: text

You can attach inputs to the step as shown in the complete file below. QType will automatically propagate flow inputs and outputs if you don’t declare them at the flow level: - Flow inputs are inferred from the first step’s inputs. - Flow outputs are inferred from the last step’s outputs. - LLMInference provides a default output variable named <step_id>.response of type text.

The Complete Example¶

Here is the full hello_world.qtype.yaml file:

id: hello_world
flows:
  - id: simple_example
    steps:
      - id: llm_inference_step
        model:
          id: gpt-4
          provider: openai
          auth:
            id: openai_auth
            type: api_key
            api_key: ${OPENAI_KEY}
        system_message: |
          You are a helpful assistant. Answer the following question:
          {{question}}
        inputs:
          - id: question
            type: text

Validate Your Spec¶

Use the QType CLI to validate the file:

qtype validate hello_world.qtype.yaml

Validation checks things like required fields, flow structure, and type rules. You should see:

INFO: ✅ Schema validation successful.
INFO: ✅ Model validation successful.
INFO: ✅ Language validation successful
INFO: ✅ Semantic validation successful

Run the Pipeline Locally¶

On the Command Line¶

To execute a flow directly from the CLI, pass JSON inputs:

qtype run '{"question":"What is QType?"}' hello_world.qtype.yaml

As an API¶

If you have installed the interperter, you can launch it with:

qtype serve hello_world.qtype.yaml

and visit http://localhost:8000/docs to see the swagger docs.

As a UI¶

If you have installed the interperter, you can launch it with:

qtype serve hello_world.qtype.yaml

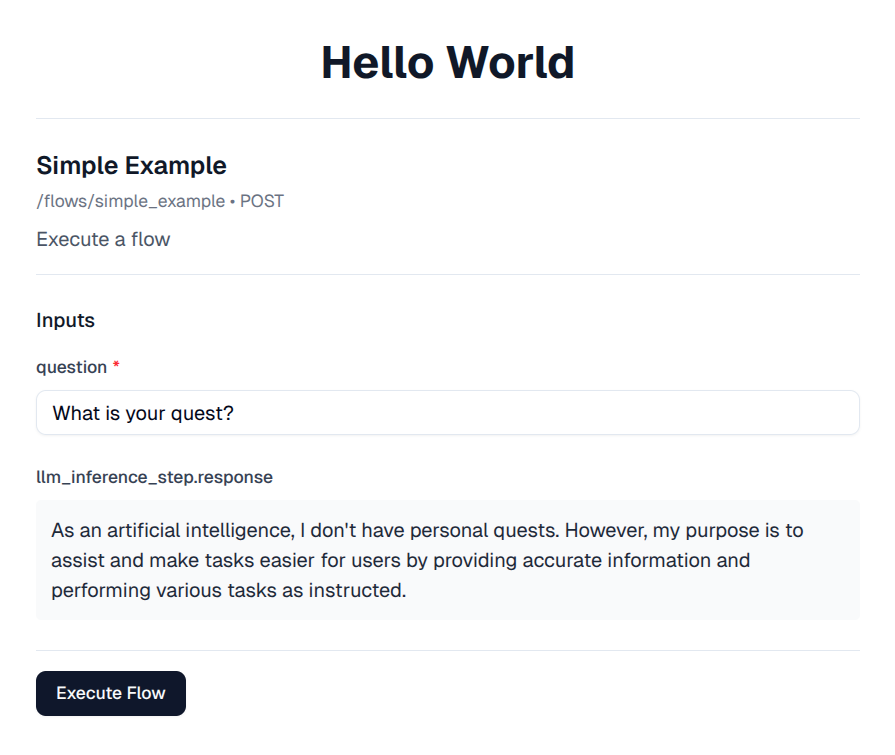

and visit http://localhost:8000/ui to execute the flow:

Example UI

How It Works at Runtime¶

Input inference: Because we didn’t declare flow-level inputs, QType infers them from the first step (question).
Output inference: Because we didn’t declare flow-level outputs, QType infers them from the last step. LLMInference automatically defines a default text output named llm_inference_step.response.
Templating: The system_message uses {{question}} to inject the provided input when the step runs.

Complete vs Chat Flows¶

From the Flow docs:

Complete flows (this tutorial):
Default mode for flows
Stateless executions — accept input values and produce output values
Served at /flows/<flow_id>
Chat flows:
Must have at least one input variable of type ChatMessage
May only have one output variable of type ChatMessage
Served at endpoints ending with /chat
Can be stateful if the LLM step includes Memory

This tutorial’s pipeline is a Complete flow, so it expects simple input values (like text) and returns structured outputs without chat-specific constraints.

Next Steps¶

Add inference_params to tune behavior (e.g., temperature, max tokens)
Chain multiple steps (e.g., post-process with a Decoder)
Add tools or API calls and compose more complex flows
